Docker for Development
Docker for Development
✅ Setup the Dev env
✅ Setup the Tests env
✅ Deploy to Prod env
✅ Pray
👨🏻💻
the Dev env
GITHUB/ANYHUB
Branch
Master
👨🏻💻
👨🏻💻
Example
Let's create simple ⚛️ React App
demo@demo:$ npx create-react-app react_demo && yarn start
Compiled successfully!
You can now view react_demo in the browser.
Local: http://localhost:3000
On Your Network: http://192.168.0.88:3000
Note that the development build is not optimized.
To create a production build, use yarn build.
demo@demo:$ cd react_demo && tree
➞ tree
.
├── README.md
├── package.json
├── public
│ ├── favicon.ico
│ ├── index.html
│ ├── logo192.png
│ ├── logo512.png
│ ├── manifest.json
│ └── robots.txt
├── src
│ ├── App.css
│ ├── App.js
│ ├── App.test.js
│ ├── index.css
│ ├── index.js
│ ├── logo.svg
│ ├── serviceWorker.js
│ └── setupTests.js
└── yarn.lock
2 directories, 17 files
➞ tree
.
├── README.md
├── package.json
├── Dockerfile.dev
├── public
│ ├── favicon.ico
│ ├── index.html
│ ├── logo192.png
│ ├── logo512.png
│ ├── manifest.json
│ └── robots.txt
├── src
│ ├── App.css
│ ├── App.js
│ ├── App.test.js
│ ├── index.css
│ ├── index.js
│ ├── logo.svg
│ ├── serviceWorker.js
│ └── setupTests.js
└── yarn.lock
2 directories, 17 files
FROM node:latest
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
COPY . .
CMD ["yarn" ,"start" ]

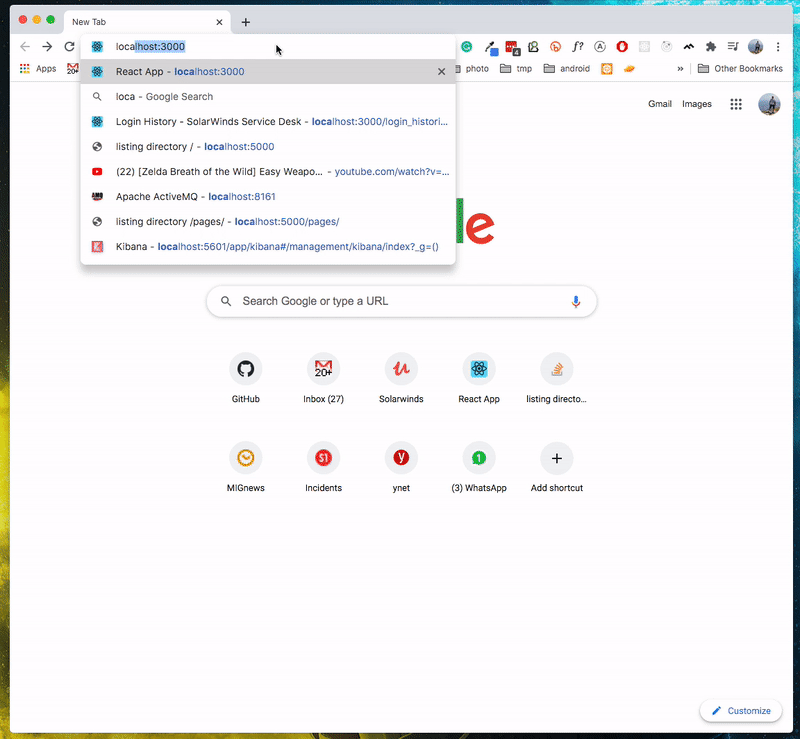

d build -t react_app -f dockerfile.dev . && d run -it -p 3000:3000 react_app
Compiled successfully!
You can now view react_demo in the browser.
Local: http://localhost:3000
On Your Network: http://172.17.0.2:3000
Note that the development build is not optimized.
To create a production build, use yarn build.
FROM node:latest
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
COPY . .
CMD ["yarn" ,"start" ]
🤔

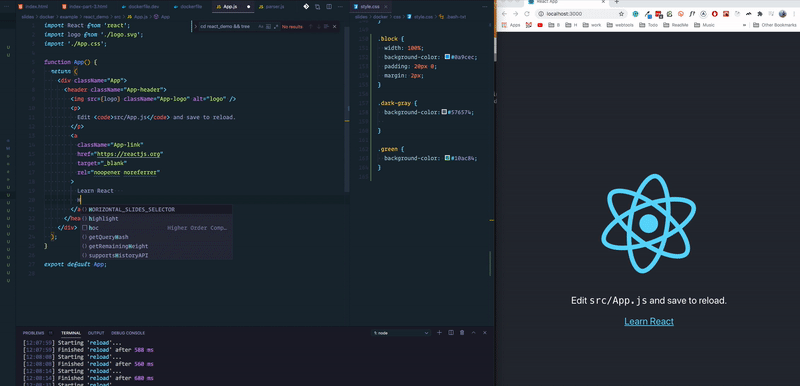

❌ rebuild
❌ volumes
✅ fs mapping
d run -it -p 3000:3000 -v $(pwd):/usr/src/app react_app
➞ d run -it -p 3000:3000 -v $(pwd):/usr/src/app react_app
yarn run v1.22.5
$ react-scripts start
/bin/sh: 1: react-scripts: not found
error Command failed with exit code 127.
FROM node:latest
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
COPY . .
CMD ["yarn" ,"start" ]
d run -it -p 3000:3000 -v $(pwd):/usr/src/app react_app

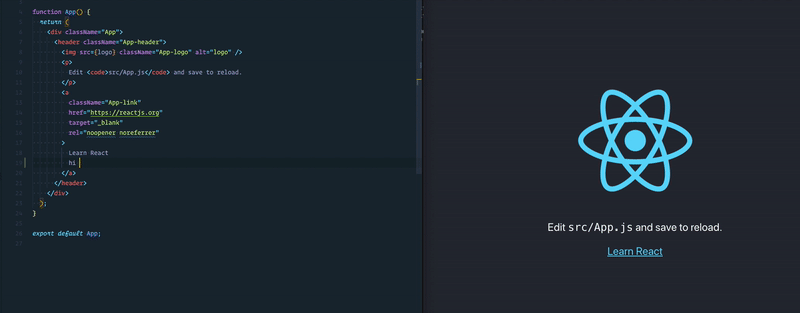

➞ d run -it -p 3000:3000 -v $(pwd):/usr/src/app -v /usr/src/app/node_modules react_app
➞ d run -it -p 3000:3000 -v $(pwd):/usr/src/app react_app
Compiled successfully!
You can now view react_demo in the browser.
Local: http://localhost:3000
On Your Network: http://172.17.0.2:3000
Note that the development build is not optimized.
To create a production build, use yarn build.
🧐
Full Stack
CLIENT
BACKEND
DB
REST-API
GQL
LOG
BATCH
BACKUP
PROXY
🤓
What If ?
docker compose
CLIENT
BACKEND
DB
REST-API
GQL
LOG
BATCH
BACKUP
PROXY
CLIENT
BACKEND
Folder structure
➞ tree -d .
.
├── mongo
│ └── ...
├── nmap
│ └── ...
├── praser
│ └── ...
├── reactApp (client)
│ └── ...
├── backend
└── ...
⚛️ React App
➞ d run -it -p 3000:3000 -v $(pwd):/usr/src/app -v /usr/src/app/node_modules react_app
FROM node:latest
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
COPY . .
CMD ["yarn" ,"start" ]
version: '3'
volumes:
mongoVolume:
sharedFolder:
services:
mongo-server:
image: 'mongo'
restart: always
volumes:
- mongoVolume:/data/db
ports:
- 27017:27017
nmap:
build: nmap/.
restart: always
volumes:
- sharedFolder:/usr/src/app/data
parser:
build: parser/.
restart: always
volumes:
- sharedFolder:/usr/src/app/data
environment:
- MONGO_HOST=mongo-server
version: '3'
volumes:
mongoVolume:
sharedFolder:
services:
mongo-server:
nmap:
parser:
client:
stdin_open: true
build:
context: reactApp
dockerfile: dockerfile.dev
volumes:
- ./reactApp:/usr/src/app
- /usr/src/app/node_modules
ports:
- 3000:3000
💢 Backend
➞ tree -d
backend:
├── api.js
├── package.json
├── yarn.lock
try {
(async function () {
console.log(url)
mongo.db = await mongoConnect(url)
mongo.dbo = mongo.db.db('mydb')
})()
} catch (e) {
console.log(e)
}
const mongoGet = async () => {
return new Promise(function (yes, no) {
try {
mongo.dbo.collection('scans').findOne({}, function (err, res) {
if (err) throw err
yes(res)
})
} catch (err) {
console.log('ERROR mongo SET', err)
no(err)
}
})
}
const express = require('express')
const app = express()
app.get('/', function (req, res) {
res.send('Working !!!')
})
app.get('/api/get', async function (req, res) {
const data = await mongoGet()
res.json(data)
})
app.listen(port, function () {
console.log('listening on port ' + port)
})
FROM node:latest
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
COPY api.js .
CMD ["node" ,"api.js" ]
version: '3'
volumes:
mongoVolume:
sharedFolder:
services:
mongo-server:
nmap:
parser:
client:
backend:
build: backend/.
restart: always
ports:
- 8080:8080
environment:
- MONGO_HOST=mongo-server

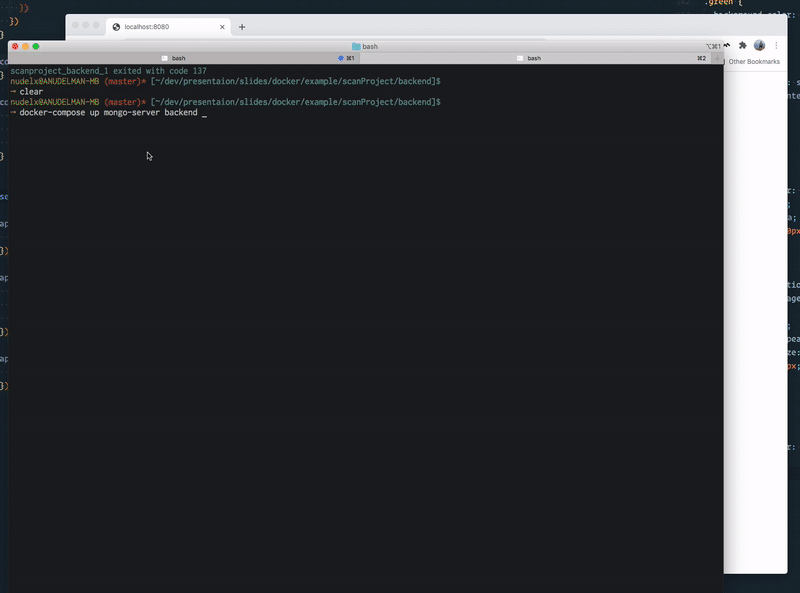

➞ d ps
CONTAINER ID IMAGE STATUS PORTS NAMES
1d3c1e418da5 scanproject_backend Up 10 seconds 0.0.0.0:8080->8080/tcp scanproject_backend_1
8dd524031b31 mongo Up 10 seconds 0.0.0.0:27017->27017/tcp scanproject_mongo-server_1

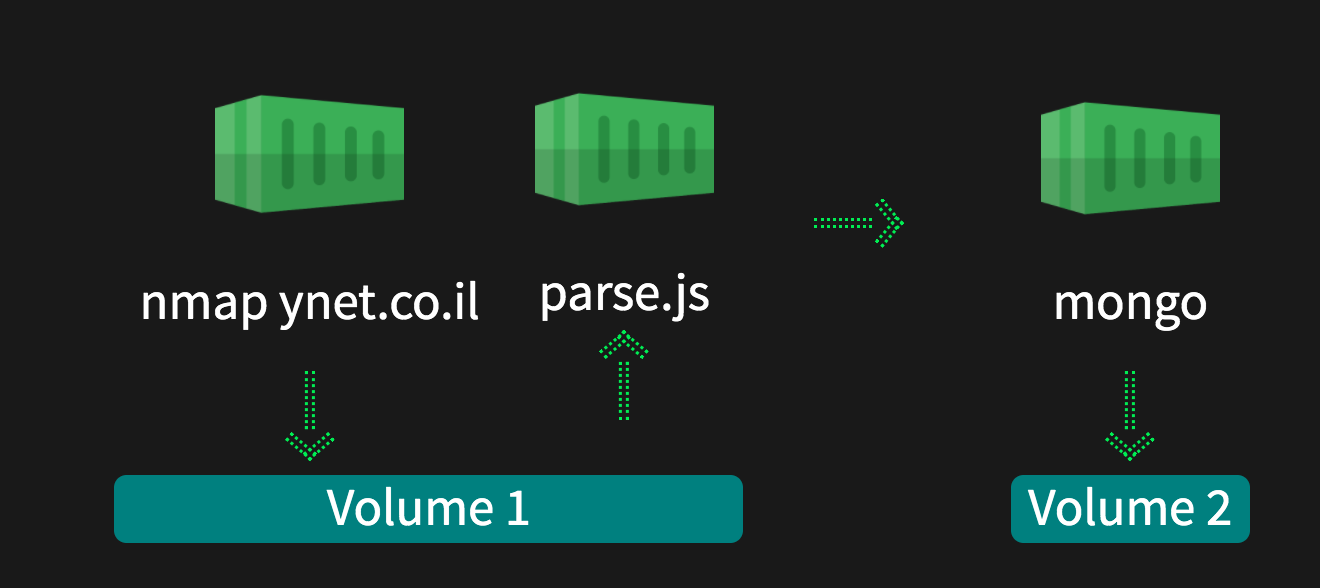

Full Stack Docker Dev Env
NMAP
CLIENT
👉
👉
PARSER
👉
DB
👉
BACKEND
import React, { useEffect, useState } from 'react'
import Card from '../src/card'
export default () => {
const [cards, setCards] = useState([])
useEffect(() => {
fetch(`some/url/for/api`)
.then((r) => r.json())
.then((d) => setCards(d.nmaprun.host))
}, [])
return (
{cards.map((item,index) => (
fetch(`some/url/for/api`)
.then((r) => r.json())
.then((d) => setCards(d.nmaprun.host))

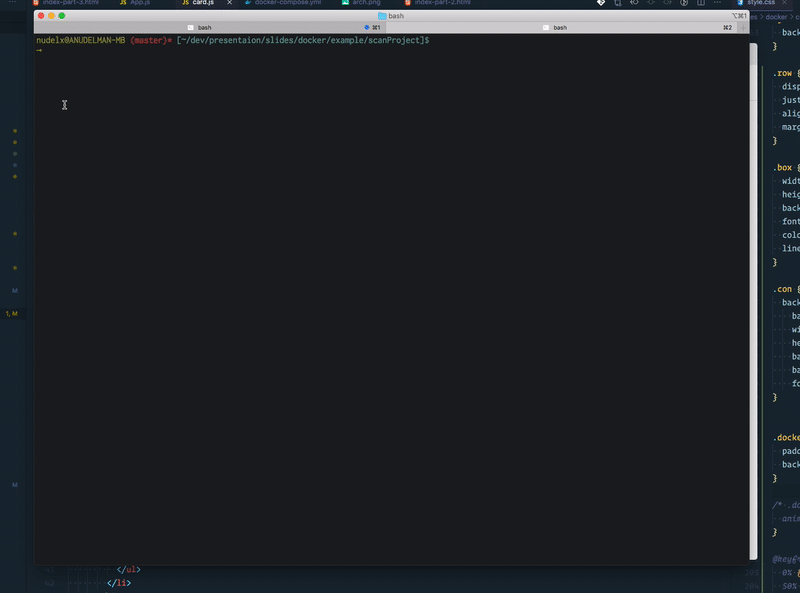

➞ docker-compose up backend client mongo-server Creating network "scanproject_default" with the default driver Creating scanproject_backend_1 ... done Creating scanproject_mongo-server_1 ... done Creating scanproject_client_1 ... done
➞ d ps
CONTAINER ID IMAGE PORTS NAMES
33d8f527948c scanproject_client 0.0.0.0:3000->3000/tcp scanproject_client_1
7372f0d9718e mongo 0.0.0.0:27017->27017/tcp scanproject_mongo-server_1
02bcb6671f60 scanproject_backend 0.0.0.0:8080->8080/tcp scanproject_backend_1
const host = global.process.env.api || 'localhost'
fetch(`http:${host}:8080/api/get`)
.then((r) => r.json())
.then((d) => setCards(d.nmaprun.host))
➞ d run -v sharedFolder:/usr/src/app/data nmap
Starting Nmap 7.80 ( https://nmap.org ) at 2020-08-04 20:41 UTC
Nmap scan report for ksp.co.il (212.199.38.38)
Host is up (0.0031s latency).
rDNS record for 212.199.38.38: 212.199.38.38.hosting.spd.co.il
Not shown: 998 filtered ports
PORT STATE SERVICE
80/tcp open http
443/tcp open https
Nmap scan report for ivory.co.il (80.178.161.201)
Host is up (0.0027s latency).
Other addresses for ivory.co.il (not scanned): 212.199.184.138
rDNS record for 80.178.161.201: 80.178.161.201.static.hosting.spd.co.il
Not shown: 998 filtered ports
PORT STATE SERVICE
80/tcp open http
443/tcp open https
Nmap done: 2 IP addresses (2 hosts up) scanned in 11.16 seconds
version: '3'
volumes:
mongoVolume:
sharedFolder:
services:
mongo-server:
image: 'mongo'
restart: always
volumes:
- mongoVolume:/data/db
ports:
- 27017:27017
nmap:
build: nmap/.
restart: always
volumes:
- sharedFolder:/usr/src/app/data
parser:
build: parser/.
restart: always
volumes:
- sharedFolder:/usr/src/app/data
environment:
- MONGO_HOST=mongo-server
client:
stdin_open: true
build:
context: reactApp
dockerfile: dockerfile.dev
volumes:
- ./reactApp:/usr/src/app
- /usr/src/app/node_modules
ports:
- 3000:3000
backend:
build: backend/.
restart: always
ports:
- 8080:8080
environment:
- MONGO_HOST=mongo-server
NMAP
CLIENT
👉
👉
PARSER
👉
DB
👉
BACKEND
Why?
- ✅ Runs on my machine = runs anywhere
- ✅ New team productive from day 1
- ✅ language free - database free
- ✅ Isolated env
- ✅ Clean env
- ✅ Sharable env
- ✅ Scalable env
- ✅ Maintainable env
😎
Production Containers
➞ yarn build
yarn run v1.21.1
warning ../../../../../../../package.json: No license field
$ react-scripts build
Creating an optimized production build...
Compiled successfully.
File sizes after gzip:
39.77 KB build/static/js/2.312ef41f.chunk.js
1.01 KB build/static/js/main.8295d4ee.chunk.js
773 B build/static/js/runtime-main.815af2bc.js
743 B build/static/css/main.c57ac939.chunk.css
➞ tree build
build:
├── asset-manifest.json
├── favicon.ico
├── index.html
├── logo192.png
├── logo512.png
├── manifest.json
├── precache-manifest.4334ca6cc0765e299ad636302f210bd4.js
├── robots.txt
├── service-worker.js
└── static
├── css
│ ├── main.c57ac939.chunk.css
│ └── main.c57ac939.chunk.css.map
├── js
│ ├── 2.312ef41f.chunk.js
│ ├── 2.312ef41f.chunk.js.LICENSE.txt
│ ├── 2.312ef41f.chunk.js.map
│ ├── main.8295d4ee.chunk.js
│ ├── main.8295d4ee.chunk.js.map
│ ├── runtime-main.815af2bc.js
│ └── runtime-main.815af2bc.js.map
└── media
└── logo.5d5d9eef.svg
4 directories, 19 files
FROM node:latest as builder
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
EXPOSE 3000
COPY . .
RUN yarn build
FROM navikt/node-express
COPY --from=builder /app/build /to/the/folder/of/your/web-server
FROM node:latest
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json .
RUN yarn install
EXPOSE 3000
COPY . .
RUN yarn build
FROM navikt/node-express
COPY --from=0 /app/build /to/the/folder/of/your/web-server
